What Is Thermal Conductive Silicone and How Is It Used

Thermal conductive silicone helps control heat in electronic devices. It moves heat away from important parts. You can find it in smartphones, tablets, and wearables. It keeps these devices cool and working well. More people use electronics every day. So, the global market for these materials is growing fast. This is happening a lot in Asia-Pacific.

Thermal conductive silicone pads are better than old materials. They are more flexible, stable with chemicals, and easy to install.

You can also use thermal conductive silicone die cutting. This lets you make custom shapes that fit your device well.

Key Takeaways

• Thermal conductive silicone takes heat away from hot parts. This helps keep devices cool and working right.
• It is very flexible and stops electricity from passing through. It is strong, lasts a long time, and does not get damaged by chemicals or heat.
• There are many types like adhesives, greases, gap fillers, potting compounds, pads, sheets, and phase change materials.
• You pick the right silicone by looking at heat needs, electrical safety, how you use it, and where it will be used.
• Cleaning the surface and putting on the silicone carefully helps it work better and stick well.
• Always stay safe by wearing gloves, working where air moves, and keeping silicone in the right place.
• Checking and taking care of the silicone often stops problems and helps it last longer.
• People use thermal conductive silicone in electronics, cars, LED lights, and home devices to help them work better and last longer.

What Is Thermal Conductive Silicone

Definition

Thermal conductive silicone helps move heat away from important parts. It fills tiny spaces between surfaces in your devices. This lets heat go from hot spots to cooler places fast. You can find it in electronics, cars, and LED lights. It is safe with both heat and electricity. You can shape it to fit many spaces and sizes. That is why engineers and designers like to use it.

Key Properties

Thermal conductive silicone has special features that make it better than many other materials. You can see these features in the table below:

This material moves heat quickly, so your device stays cool. It also keeps electricity from leaking out. The material bends and stretches to fit bumpy or odd shapes. This helps cover every small gap. It lasts a long time, even in tough places. It does not get ruined by oil, water, or chemicals. These features make it a smart pick for handling heat in many devices.

Tip: If you need something safe for heat and electricity, thermal conductive silicone is a good choice. 🛡️

How It Works

Material Composition

Thermal conductive silicone works because it has a special mix. You need to know what is inside to see how it handles heat.

Silicone Base

The main part is the silicone base. This base uses organopolysiloxanes. These are flexible and stable molecules. They can be straight, branched, or form networks. You often see dimethylpolysiloxane or organohydrogenpolysiloxane in these products. The silicone base makes the material stretchy. It can handle high heat. It also helps the silicone last a long time. It does not break down from oils or chemicals.

Conductive Fillers

Manufacturers add fillers to help move heat better. These fillers can be metals, ceramics, or carbon-based materials. Here is a table that shows the main parts you might find in thermal conductive silicone:

The type of filler changes how well heat moves. Metallic fillers like aluminum, copper, or silver help heat move fast. Liquid metal droplets let the silicone stretch and still move heat. Ceramic fillers, like boron nitride or aluminum nitride, keep electrical insulation strong. They also help heat flow better. The shape of the filler matters too. For example, boron nitride sheets work better than round aluminum oxide.

Tip: Boron nitride fillers give the best boost in heat transfer. They also keep your device safe from electrical shorts.

Heat Transfer Mechanism

Thermal conductive silicone keeps your device cool by moving heat. It takes heat from hot parts and sends it to cooler spots. Here is how it works:

• The silicone fills tiny gaps and rough spots between your device and the heat sink.
• Its soft and stretchy nature lets it press into every small space, even when the surfaces are not flat.
• Ceramic or metal fillers inside the silicone create easy paths for heat to travel.
• The silicone pushes out air, which does not carry heat well, and replaces it with a better path for heat flow.
• You get both good heat transfer and electrical insulation, so your device stays safe and cool.

You can trust thermal conductive silicone to keep electronics running well. It can handle pressure, shaking, and changes in temperature. This makes it a smart pick for many modern devices.

Thermal Conductive Silicone Types

Adhesives

Thermal conductive silicone adhesives help stick parts together and move heat. You can use them to attach heat sinks or chips to circuit boards. They fill small spaces so heat can travel easily. You do not need clips or screws, which makes building things simpler.

These adhesives work well in places with shaking, chemicals, or very hot or cold temperatures. They keep working even when things get tough. Their high thermal conductivity helps your device stay cool and safe. The table below shows how silicone adhesives compare to other materials:

Tip: If you want strong sticking and great heat movement, silicone adhesives are a good pick.

Greases and Pastes

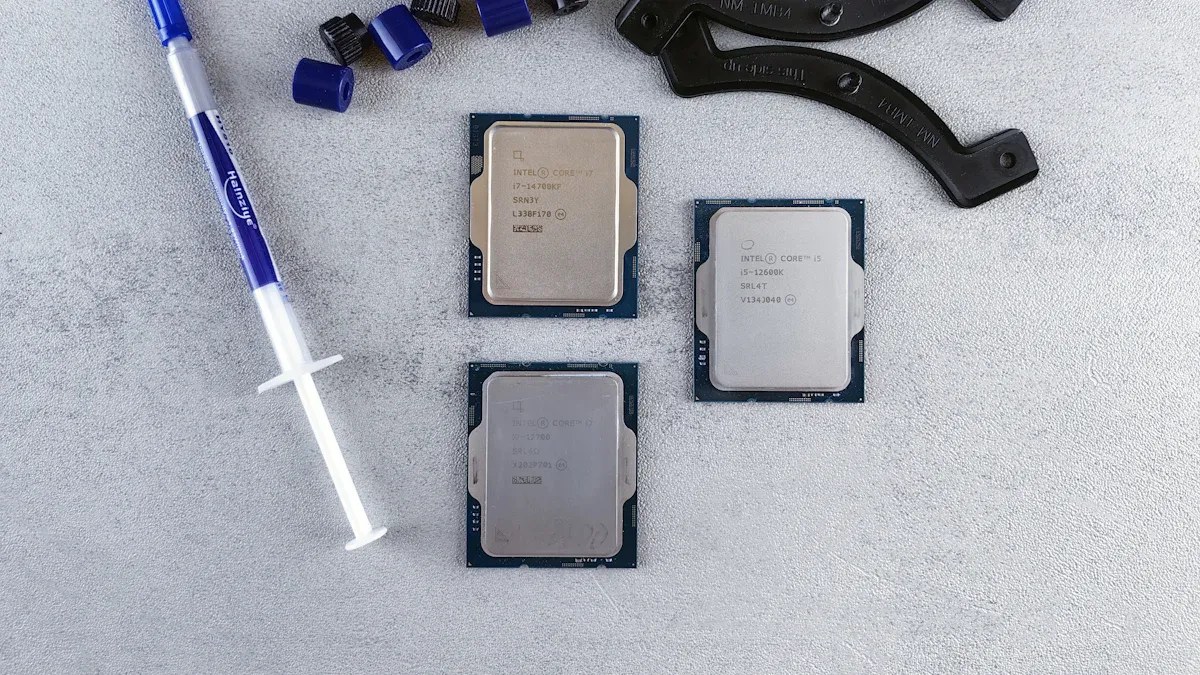

Thermal conductive greases and pastes help heat move from hot parts to heat sinks. You often use them in computers and power electronics. These greases fill tiny air spaces that stop heat from moving. When you put on the grease, it spreads out and makes a smooth path for heat.

You can find greases and pastes in many electronics, like:

• Computer processors (CPUs)
• Graphics cards (GPUs)
• Laptops and mobile devices
• Power supplies and voltage regulators
• LED lighting modules

Thermal grease works by filling tiny gaps and stopping air pockets. Air does not move heat well, so getting rid of it helps your device stay cool. You should choose grease by looking at its thermal conductivity, thickness, and how it handles heat and pressure. The right grease helps your electronics last longer and work better.

Gap Fillers

Gap fillers are soft and squishy materials that help move heat in devices with uneven surfaces or big spaces. You can press them between parts to fill spots that pads or greases cannot reach. Gap fillers are good when you need to protect delicate parts from too much pressure.

Gap fillers give you many benefits:

• You only need a little force to press them, so parts do not break.
• They move heat well for better cooling.
• Sticky surfaces help lower contact resistance.
• They can fill big or uneven spaces.
• They last a long time and do not need mixing or cold storage.
• They are easy to use and less messy than grease.
• They work well even with shaking, wetness, or dust.

Gap fillers also save time when putting things together. You can cut them to fit or use types you can squeeze out for exact placement. They keep their shape before you press them in, so they are easy to move and install. In big factories, gap fillers help make things faster and lower repair costs.

Note: Gap fillers give steady, long-lasting heat control and are simple to use, so they are a great choice for advanced electronics.

Potting Compounds

Potting compounds help you protect and cool electronic parts at the same time. You pour these materials over your components, and they harden to form a strong shield. Here is how potting compounds work for your devices:

• They create a sealed barrier that keeps out moisture, dust, and chemicals. This helps prevent corrosion and short circuits.
• Potting compounds have thermal conductivity. They pull heat away from your electronic parts and spread it out, so nothing gets too hot.
• These materials fill all the empty spaces around your components. This makes a smooth path for heat to travel and stops hot spots from forming.
• The sealed layer blocks dirt and other things that could hurt your device or slow down heat flow.
• Potting gives your electronics extra strength. It holds parts in place and protects them from shaking or bumps.
• You can use potting to connect your parts directly to a heat sink. This helps move heat out even faster.
• By using potting compounds, you make sure your electronics stay safe and cool, even in tough places.

Tip: If you want your electronics to last longer and work better, potting compounds offer both protection and cooling in one step.

Pads and Sheets

Thermal pads and sheets give you an easy way to manage heat in your devices. You place them between hot parts and heat sinks. These pads are soft and can squeeze into small gaps. This helps them touch every surface and move heat quickly.

Thermal pads and sheets have high compressibility. You can press them into uneven spaces, and they still work well. They also provide strong electrical insulation. This means they stop electricity from leaking between parts, which keeps your device safe from short circuits.

Research shows that silicone rubber pads keep their softness and insulation, even when you press them hard. Some pads can reach thermal conductivity as high as 20.4 W/m·K. This means they move heat very well without losing their safety features.

You can find special pads like Sur-Cool® sheets. These offer:

• Excellent electrical insulation and improved heat transfer
• UL 94 V-0 safety rating for fire resistance
• Thermal conductivity from 1 to 3 W/mK
• Thin, tough, and easy-to-handle design
• Options with or without sticky backing

Note: Pads and sheets are great for filling gaps, stopping electrical problems, and keeping your electronics cool.

Phase Change Materials

Phase change materials (PCMs) help you control heat in a smart way. These materials start as solids. When your device heats up, they melt and turn into liquids. This change lets them absorb a lot of heat without getting much hotter themselves.

You use PCMs between chips and heat sinks. When your device gets hot, the PCM melts and fills every tiny gap. This makes a smooth path for heat to move out. When your device cools down, the PCM turns solid again and stays in place.

Here are some reasons to use phase change materials:

• They react to temperature changes and manage heat spikes.
• PCMs fill gaps better than many other materials.
• They keep your device at a steady temperature.
• You do not need to reapply them after each use.

PCMs work well in computers, power supplies, and LED lights. If you want a material that adapts to changing heat, phase change materials are a smart choice.

Applications

Electronics

You use lots of electronic devices every day. These devices keep getting smaller and faster. This means they make more heat in less space. Thermal conductive silicone helps control this heat. It fills spaces between hot parts and cooling pieces like heat sinks. The material moves heat away from important chips. This keeps your device working well.

You can find thermal conductive silicone in many products. It is in power converters, flat panel displays, and set-top boxes. You also see it in audio-video equipment, test tools, and LED lights. For example, set-top boxes have CPUs and GPUs that get very hot. Silicone pads or sheets help these parts stay cool and last longer. Using this material lowers the chance of overheating. Your electronics stay quiet and work well, even when you use them a lot.

Tip: If you want your electronics to last longer and work better, always check for good heat management materials inside.

Automotive

Modern cars use lots of electronic systems. These systems help with safety, maps, and power. They must work in tough places with heat and shaking. Thermal conductive silicone helps keep car electronics safe and working.

• You find this material in ADAS sensors and battery systems.
• It is also in charging units and other car electronics.
• It helps cool printed circuit boards in sensors.
• The soft pads protect small parts from shaking and heat changes.
• Silicone works from -40°C to 150°C, so it is good for hot and cold weather.
• It also keeps out water, dust, and chemicals.
• Some types block unwanted electrical signals.

Thermal conductive silicone pads move heat well, from 1.5 to 12 W/m·K. They keep your car’s electronics cool, even in hard places. Many top car brands use these materials to make cars last longer and cost less.

LED Lighting

LED lights are used in homes and on streets. These lights get hot when they are on. If you do not control the heat, LEDs can break or get dim. Thermal conductive silicone helps fix this problem.

• You can use silicone pads, greases, or adhesives with LEDs.
• The material fills air gaps and rough spots.
• This makes a smooth path for heat to leave.
• Its softness lets it fit any shape or surface.
• You can change the thickness to fill different spaces.
• It keeps the temperature steady and stops electricity from leaking.

Thermal conductive silicone is easy to use. You do not need many screws or clips. The material stays in place and you can use it again. Using this material keeps your LEDs bright and working longer. You also lower the chance of heat damage and save money on repairs.

Note: Good heat control in LED lighting means safer, brighter, and more reliable lights for your home or business.

Consumer Devices

You use lots of consumer devices every day. These include smartphones, tablets, computers, and home entertainment systems. All these devices make heat when they work. If you do not control this heat, your device can slow down or even stop. Thermal conductive silicone helps fix this problem.

Smartphones and tablets are thin and light. Their small size makes it hard to get rid of heat. When you play games or use apps, the processor and battery get hot. If heat stays inside, your phone may slow down or the battery may wear out faster. Silicone thermal pads, sometimes only 0.3mm thick, fit in tight spaces. They move heat away from the processor and battery. This keeps your device cool and safe. Your device works better and lasts longer.

Thermal conductive silicone sheets also help in computers and laptops. These devices have CPUs and GPUs that get hot. Silicone sheets fill tiny gaps between chips and heat sinks. This helps heat move out faster. Your computer runs well, even after long use.

You can see the benefits of thermal conductive silicone in many other devices:

• Fax machines and telephones use silicone for sealing, bonding, and heat control. This makes them last longer and work better.
• Home entertainment equipment like TVs and speakers use silicone to move heat and stop shaking. This helps prevent damage and keeps sound and picture quality high.
• Office equipment such as keyboards and rollers use silicone for both heat and mechanical stability.

Here is a table that shows how different devices benefit from thermal conductive silicone:

Tip: If you want your devices to last longer and work better, always look for good heat management inside. Thermal conductive silicone makes a big difference in keeping your electronics safe and reliable.

Thermal conductive silicone is easy to use. Its flexibility lets it fit into any shape or space. It stays strong even when your device gets hot or is used a lot. You do not have to worry about it breaking down over time. This is why engineers pick it for almost every modern device. You get better performance, longer life, and safer use—all because of this smart material.

Selection Guide

Key Criteria

When you pick a thermal solution, you should think about a few things. The right thermal conductive silicone keeps your electronics cool and safe. Here are the main things to look for:

Thermal Conductivity

Thermal conductivity shows how well the material moves heat. You need a value that fits your device. First, check how much heat your device makes. You can find this in datasheets or by testing. Next, decide the highest temperature you want. Figure out the total thermal resistance from the heat source to the air. Take away other resistances to get the most resistance allowed for the silicone. Use the thickness and area to find the lowest thermal conductivity you need. Always test your choice on real devices to make sure it works.

Electrical Insulation

Many devices need both heat control and electrical safety. Make sure the silicone gives strong insulation and can handle high voltage. This keeps your parts safe from shorts or leaks. Some pads and sheets have great dielectric strength, which is important for sensitive electronics.

Application Method

Think about how you will use the material. Some types come as pads, greases, or adhesives. Pads are easy to place and fill gaps well. Greases and pastes spread into tiny spaces but need careful use. Adhesives stick parts together and move heat too. Pick a type that fits your assembly and the surfaces you need to cover.

Environmental Resistance

Your device might face water, chemicals, or sunlight. Make sure the silicone can handle these things. Look for materials that stay strong in heat, cold, and tough places. Some products also meet safety rules for fire or chemical exposure.

Tip: Always check if the material meets industry rules and has quality certifications. This helps you trust its performance.

Matching Type to Application

You need to pick the right type of thermal conductive silicone for your device. Here are some tips to help you choose:

• Use silicone pads for hot electronics. They have good thermal conductivity and strong insulation. Some pads reach up to 4.9 W/mK and fit tight spaces.
• Pick greases or pastes for CPUs and GPUs. These fill tiny gaps and help heat move out fast.
• Choose gap fillers for bumpy surfaces or delicate parts. They protect against shaking and pressure.
• Select potting compounds when you need both protection and cooling. These keep out water and dust while moving heat.
• Check the thickness and size. Thinner pads usually move heat better, but you must meet your device’s needs.
• Make sure the material stays strong in your device’s working environment. Look for resistance to water, chemicals, and sunlight.
• Balance cost with performance. Sometimes, a higher price means better reliability and longer life.

Note: Always test your choice in real conditions. This helps you make sure your device stays cool and safe.

Best Practices

Surface Prep

Getting the surface ready is the first step for good results with thermal conductive silicone. You want the silicone to stick well and work as it should. Here are some steps you should follow:

• Clean all surfaces to remove dust, oil, grease, and moisture. Use a lint-free cloth or a suitable solvent if needed.
• Make sure the surfaces are completely dry before you apply the silicone. Wet spots can cause curing problems.
• Check for any leftover residues or contaminants. These can block the silicone from sticking.
• If the surface is very smooth, roughen it a little. A rougher surface helps the silicone bond better.
• For some materials, you may need to use a primer or a surface treatment agent. This helps improve adhesion.
• Always test a small area first. This lets you check if the silicone sticks well and does not react with your material.
• Avoid working in extreme temperatures. Follow the temperature range given by the manufacturer for best results.

Tip: Good surface prep means better heat transfer and longer-lasting bonds.

Application Tips

Applying thermal conductive silicone the right way helps you get the best heat control. Here are some tips to help you:

• Spread thermal grease or paste in a thin, even layer. Too much can trap air and block heat flow. Too little may leave gaps.
• For large jobs, use automated dispensers. These tools help you get the same amount every time and avoid mistakes.
• Pick the right pattern for your part. Use dot patterns for fast work and less air. Try serpentine patterns for rectangles or spiral patterns for round parts.
• Control the pressure when you press pads or gap fillers into place. Use fixtures or stops to keep the thickness even.
• Keep the work area clean and control the temperature and humidity. This helps the silicone set properly.
• Check your work. Look for air bubbles, missed spots, or dirt before you finish.

Note: Uniform coverage gives you better cooling and keeps your device safe.

Curing and Handling

Curing is when the silicone changes from soft to solid. You need to let it cure fully for the best results. Here is a table with typical curing times and tips:

• Always allow enough time for the silicone to cure before you handle or package your parts.
• If you use a one-part silicone, remember that moisture in the air helps it cure.
• For best results, follow the instructions on the product label.

Tip: Patience during curing leads to strong, reliable bonds and the best thermal performance.

Safety

When you work with thermal conductive silicone, you need to think about safety. This material is safe for most uses, but you should still follow some important rules. Good safety habits help you avoid accidents and keep your workspace clean.

Personal Protective Equipment (PPE)
You should always wear the right gear when handling thermal conductive silicone. Here is what you need:

• Gloves: Use chemical-resistant gloves. They protect your skin from irritation.
• Safety glasses: Wear these to keep silicone out of your eyes.
• Long sleeves: Cover your arms to avoid skin contact.

Tip: If you get silicone on your skin, wash it off with soap and water right away.

Ventilation
Work in a place with good airflow. Some silicones give off small amounts of vapor when you use them. Open windows or use a fan to keep the air fresh. If you work with large amounts, use a fume hood or local exhaust.

Safe Handling
Read the product label before you start. Follow the instructions from the manufacturer. Do not eat, drink, or smoke while using silicone. Keep food and drinks away from your workspace. If you spill silicone, clean it up right away with a cloth or paper towel.

Storage
Store thermal conductive silicone in a cool, dry place. Keep the container closed when you are not using it. Do not let it freeze or get too hot. Store it away from children and pets.

Disposal
Throw away used silicone and empty containers as the label says. Some types can go in regular trash, but others need special disposal. Check local rules for chemical waste. Never pour silicone down the drain.

Note: Always read the Safety Data Sheet (SDS) for your product. The SDS gives you more details about hazards and first aid.

Emergency Steps
If you get silicone in your eyes, rinse with water for at least 15 minutes. If you breathe in fumes and feel sick, move to fresh air. If you swallow silicone, get medical help right away.

By following these safety steps, you protect yourself and others. You also make sure your project goes smoothly. Safety is always the best practice! 🦺

Troubleshooting

Performance Issues

Sometimes, you might have problems with thermal conductive silicone in your devices. Knowing about these problems helps you fix them fast and keep your electronics safe. Here are the most common issues:

1. Low thermal conductivity can happen if you put the silicone on wrong, use dirty surfaces, or pick cheap materials. This can make your device get too hot.
2. Poor adhesion happens when surfaces are not clean. If the pad moves, heat cannot move out well.
3. Mechanical damage like rips or holes can happen if you press too hard or install it wrong. Broken pads do not move heat well.
4. Contamination from dust, dirt, or oil makes the silicone work worse.
5. Aging and degradation from heat, sunlight, or tough places can make the silicone stop working as well over time.

Tip: Clean all surfaces before you start. Use the right amount of pressure and pick good silicone to stop these problems.

Too much pressure can hurt your silicone pads. If you press too hard, you can break small parts. When temperatures change, the pads can crack or lose contact. Always look at your pads for damage and change them if needed.

Compatibility

Before you use thermal conductive silicone, make sure it works with your device’s materials. Here are some steps to check:

1. Review the working conditions like temperature, pressure, and how long you will use the silicone.
2. Check chemical compatibility charts to see if the silicone can handle the chemicals in your device.
3. Test the silicone in real or fake conditions to see how it works.
4. Think about chemical strength and how long it touches the silicone because these can change how well it lasts.
5. Check the silicone’s strength and hardness after testing to make sure it still works for you.

Note: Testing first helps you avoid big mistakes and broken devices.

Maintenance

Taking care of your thermal conductive silicone helps it last longer. Here are some easy tips:

• Do not bend, stretch, or press the pads too much when you put them in. This stops inside damage.
• Clean the pads often to get rid of dust and dirt. This helps heat move better.
• Keep pads away from too much heat, wetness, or strong chemicals. These things can make the silicone break down faster.
• Pick good silicone pads from brands you trust. Look for ones with good reviews and reports.
• Store and move pads carefully so they do not get dirty or broken.

Thermal conductive silicone works well in hard places. It keeps out dust, water, and shaking. You can use it outside or in busy spots. Checking and cleaning it often helps your devices last longer and stay safe.

Tip: Always follow the maker’s care tips for the best results. Good care means better performance and fewer problems.

You now know that thermal conductive silicone helps control heat in electronics and cars. Picking the right kind means you should check how well it moves heat, how thick it is, and if it keeps electricity from leaking. Custom options, like ODT die cutting service, make parts that fit your needs and help your devices work better.

For the best results, ask experts to help you choose the right material for your project.

FAQ

What is the main purpose of thermal conductive silicone?

Thermal conductive silicone helps move heat away from hot parts. This stops your device from getting too hot. It keeps electronics safe and working longer.

Can you reuse thermal pads or sheets?

Some thermal pads can be used again if they are clean. Check for dirt, rips, or if they do not stick well. If a pad looks old or damaged, use a new one.

Is thermal conductive silicone safe for all electronics?

You can use thermal conductive silicone with most electronics. It gives strong electrical insulation and resists chemicals. Always test a small spot first to make sure it is safe.

How do you store thermal conductive silicone products?

Keep thermal conductive silicone in a cool, dry place. Close the container when you are not using it. Do not let it get too hot or sit in the sun.

What is the difference between thermal grease and thermal pads?

How do you know if you applied thermal silicone correctly?

Make sure the surfaces touch with no air bubbles. The silicone should cover the whole area evenly. Your device should feel cooler if you did it right.

Can you cut thermal pads to fit custom shapes?

You can cut most thermal pads with scissors or a knife. Measure the space first. Cut slowly to get the right shape for your device.

Does thermal conductive silicone expire?

Thermal conductive silicone can go bad over time. Always look for the expiration date on the package. Old silicone may not work well, so use fresh material for best results.
